موصلات ضغط PP
- موصلات ضغط PP ومشابك السرج وفقًا للمواصفة ISO 14236 / UNI 9561-9562
- الموصلات: من 20 مم إلى 63 مم (PN16) ، 75 مم إلى 110 مم (PN10) - للاستخدام مع أنابيب HDPE
- مشابك السرج: 50MM (1½ ") إلى 110MM (4") PN10 مع منافذ فرع مترابطة مؤنثة BSP
- العلامات التجارية: "ATLAS" و "FLOWTECH"
- اللون: أسود الجسم وأسود أو أزرق الرأس علامة الجودة: موافقة KIWA قيد التنفيذ

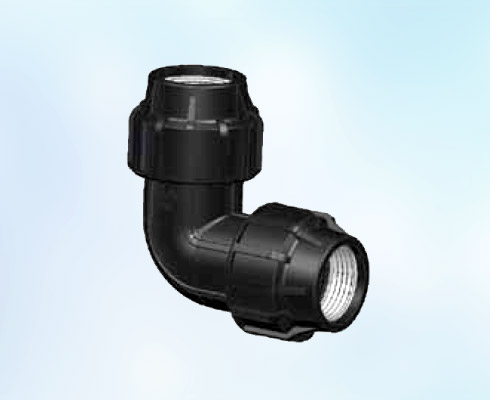

كوع
| D x D |
L |
Z |
| 20 x 20 |
50 |
12.5 |
| 25 x 25 |
54 |
15 |
| 32 x 32 |
59 |
19 |
| 40 x 40 |
70 |
26 |
| 50 x 50 |
105 |
32 |
| 63 x 63 |
98 |
35 |
| 75 x 75 |
129 |
47 |
| 90 x 90 |
135 |
48 |
| 110 x 110 |
190 |
66.5 |
كوع مذكر لولبي
| D x G |
L1 |
L2 |
Z |
Z1 |
| 20 x1/2” |
50 |
17 |
12.5 |
28 |
| 25 x 1/2” |
61 |
17 |
14 |
30 |
| 25 x 3/4” |
54 |
17 |
15 |
30 |
| 25 x 1” |
61 |
20 |
14 |
30 |
| 32 x 1/2” |
63 |
17 |
20 |
37 |
| 32 x 3/4” |
63 |
17 |
20 |
37 |
| 32 x 1” |
63 |
20 |
20 |
37 |
| 40 x 11/4” |
78 |
23 |
26 |
45 |
| 40 x 11/2” |
78 |
23 |
26 |
45 |
| 50 x 11/4” |
105 |
23 |
29 |
54 |
| 50 x 11/2” |
105 |
23 |
29 |
54 |
| 50 x 2” |
105 |
28 |
29 |
54 |
| 63 x 11/2” |
103 |
23 |
37 |
60 |
| 63 x 2” |
103 |
28 |
37 |
60 |
| 75 x 21/2” |
129 |
33 |
48 |
70 |
| 75 x 3” |
129 |
35 |
48 |
70 |
| 90 x 3” |
135 |
35 |
61 |
79 |
| 90 x 4” |
135 |
38 |
61 |
79 |
| 110 x 3” |
190 |
35 |
66.5 |
98 |
| 110 x 4” |
190 |
38 |
66.5 |
98 |
| 110 x 4” |
190 |
38 |
66.5 |
98 |
كوع مؤنث لولبي
| D x G |
L1 |
L2 |
Z |
Z1 |
| 20 x1/2” |
50 |
17 |
12.5 |
28 |
| 25 x 3/4” |
54 |
17 |
15 |
30 |
| 32 x 1/2” |
63 |
20 |
20 |
37 |
| 32 x 3/4” |
63 |
20 |
20 |
37 |
| 32 x 1” |
63 |
22 |
20 |
37 |
| 40 x 1” |
78 |
22 |
26 |
45 |
| 47 40 x 11/4” |
78 |
25 |
26 |
45 |
| 40 x 11/2” |
78 |
25 |
26 |
45 |
| 50 x 11/4” |
105 |
25 |
29 |
54 |
| 50 x 11/2” |
105 |
25 |
29 |
54 |
| 50 x 2” |
105 |
30 |
29 |
54 |
| 63 x 11/2” |
103 |
25 |
37 |
60 |
| 63 x 2” |
103 |
30 |
37 |
60 |
| 63 x 21/2” |
103 |
35 |
37 |
60 |
| 75 x 21/2” |
129 |
35 |
47 |
70 |
| 75 x 3” |
129 |
36 |
47 |
79 |
| 90 x 3” |
135 |
36 |
61 |
79 |
| 90 x 4” |
135 |
41 |
61 |
79 |
| 110 x 3” |
135 |
36 |
66.5 |
98 |
| 110 x 4” |
135 |
41 |
66.5 |
98 |
Tee مذكر لولبي
| D x D x D |
L |
Z |
Z1 |
| 20 x 20 x 20 |
50 |
25 |
12.5 |
| 25 x 25 x 25 |
54 |
25 |
15 |
| 32 x 32 x 32 |
59 |
38 |
19 |
| 40 x 40 x 40 |
78 |
52 |
26 |
| 50 x 50 x 50 |
105 |
64 |
32 |
| 63 x 63 x 63 |
98 |
70 |
35 |
| 75 x 75 x 75 |
129 |
94 |
47 |
| 90 x 90 x 90 |
135 |
96 |
48 |
| 110 x 110 x 110 |
190 |
133 |
66.5 |

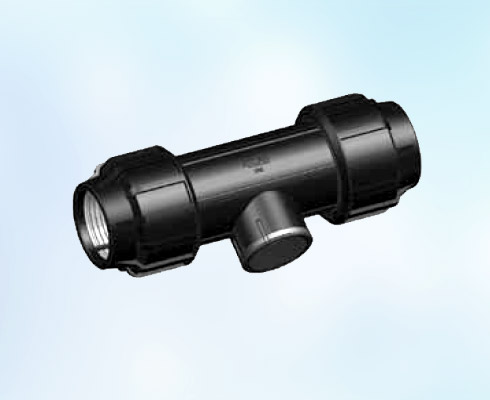

Tee مؤنث لولبي
| D x G |
L1 |
L2 |
Z |
Z1 |
| 20 x1/2” |
50 |
17 |
25 |
28 |
| 25 x 3/4” |
54 |
17 |
30 |
30 |
| 32 x 1/2” |
63 |
17 |
29 |
37 |
| 32 x 3/4” |
63 |
17 |
34 |
37 |
| 32 x 1” |
63 |
20 |
34 |
37 |
| 40 x 1” |
78 |
20 |
38 |
45 |
| 40 x 11/4” |
78 |
23 |
48 |
45 |
| 40 x 11/2” |
78 |
23 |
52 |
45 |
| 50 x 11/4” |
105 |
23 |
48 |
54 |
| 50 x 11/2” |
105 |
23 |
53 |
54 |
| 50 x 2” |
105 |
28 |
58 |
54 |
| 63 x 11/2” |
103 |
23 |
59 |
60 |
| 63 x 2” |
103 |
28 |
65 |
60 |
| 75 x 21/2” |
129 |
33 |
84 |
70 |
| 75 x 3” |
129 |
35 |
107 |
70 |
| 90 x 3” |
135 |
35 |
107 |
79 |
| 90 x 4” |
135 |
38 |
128 |
79 |
| 110 x 3” |
190 |
35 |
113 |
98 |
| 110 x 4” |
190 |
38 |
133 |
98 |
نهاية قابس
| D x G |
L1 |
L2 |
Z |
Z1 |
| 20 x 1/2” |
50 |
17 |
25 |
28 |
| 25 x 3/4” |
54 |
17 |
30 |
30 |
| 32 x 1/2” |
63 |
17 |
29 |
37 |
| 32 x 3/4” |
63 |
17 |
34 |
37 |
| 32 x 1” |
63 |
20 |
34 |
37 |
| 40x1” |
78 |
20 |
48 |
45 |
| 40 x 11/4” |
78 |
23 |
48 |
45 |
| 40 x 11/2” |
78 |
23 |
52 |
45 |
| 50 x 11/4” |
105 |
23 |
48 |
54 |
| 50 x 11/2” |
105 |
23 |
53 |
54 |
| 50 x 2” |
105 |
28 |
58 |
54 |
| 8 63 x 1” |
103 |
20 |
59 |
60 |
| 63 x 11/2” |
103 |
23 |
59 |
60 |
| 63 x 2” |
103 |
28 |
65 |
60 |
| 75 x 21/2” |
129 |
33 |
84 |
70 |
| 75 x 3” |
129 |
35 |
107 |
70 |
| 90 x 3” |
135 |
35 |
107 |
79 |
| 90 x 4” |
135 |
38 |
128 |
79 |
| 110 x 3” |
190 |
35 |
113 |
98 |
| 110 x 4” |
190 |
38 |
133 |
98 |
نهاية قابس
| D |
L |
| 20 |
50 |
| 25 |
54 |
| 32 |
59 |
| 40 |
78 |
| 50 |
105 |
| 63 |
98 |
| 75 |
129 |
| 90 |
135 |
| 110 |
190 |
مكيف مقبس مؤنث
| D x G |
L1 |
L2 |
Z |
| 20 x 1/2” |
17 |
50 |
3.0 |
| 25 x 1/2” |
20 |
61 |
4.5 |
| 25 x 3/4” |
22 |
61 |
4.5 |
| 25 x 1” |
22 |
61 |
4.5 |
| 32 x 3/4” |
22 |
63 |
6.5 |
| 32 x 1” |
22 |
63 |
7 |
| 32 x 11/4” |
23 |
63 |
9 |
| 40 x 1” |
22 |
78 |
9 |
| 40 x 11/4” |
23 |
78 |
10 |
| 40 x 11/2” |
23 |
78 |
12.5 |
| 50 x 11/4” |
23 |
105 |
15.5 |
| 50 x 11/2” |
23 |
105 |
17.5 |
| 50 x 2” |
28 |
105 |
12.5 |
| 63 x 11/2” |
23 |
103 |
8 |
| 63 x 2” |
28 |
103 |
8 |
| 75 x 2” |
28 |
129 |
6 |
| 75 x 21/2” |
33 |
129 |
6 |
| 75 x 3” |
35 |
129 |
6 |
| 90 x 3” |
35 |
135 |
10 |
| 110 x 3” |
35 |
190 |
10.5 |
| 110 x 4” |
42 |
190 |
10.5 |
مقرنة
| D x D |
L |
Z |
| 20 x 20 |
50 |
3.0 |
| 25 x 25 |
54 |
3.5 |
| 32 x 32 |
59 |
5 |
| 40 x 40 |
79 |
9 |
| 50 x 50 |
105 |
10 |
| 63 x 63 |
98 |
5 |
| 75 x 75 |
129 |
5 |
| 90 x 90 |
135 |
5 |
| 110 x 110 |
190 |
15 |
مكيف مذكر
| T |
L1 |
L2 |
Z |
| 20 x 1/2” |
17 |
50 |
3.0 |
| 25 x 1/2” |
20 |
54 |
4.5 |
| 25 x 3/4” |
22 |
54 |
4.5 |
| 25 x 1” |
22 |
54 |
4.5 |
| 32 x 3/4” |
22 |
59 |
6.5 |
| 32 x 1” |
22 |
59 |
7 |
| 40 x 11/4” |
23 |
78 |
10 |
| 40 x 11/2” |
23 |
78 |
12.5 |
| 40 x 2” |
28 |
78 |
7.5 |
| 50 x 11/4” |
23 |
105 |
15.5 |
| 50 x 11/2” |
23 |
105 |
17.5 |
| 50 x 2” |
28 |
105 |
12.5 |
| 63 x 2” |
28 |
98 |
4.5 |
| 75 x 2” |
28 |
129 |
6 |
| 75 x 21/2” |
33 |
129 |
6 |
| 75 x 3” |
35 |
129 |
6 |
| 90 x 2” |
30 |
135 |
7 |
| 90 x 3” |
32 |
135 |
10 |
| 90 x 4” |
32 |
135 |
10 |
| 110 x 3” |
35 |
190 |
10.5 |
| 110 x 4” |
42 |
190 |
10.5 |
Tee متقاطع
| D x D x D x D |
L |
Z |
Z1 |
| 32 x 32 x 32 x 32 |
63 |
51 |
25 |
| 50 x 50 x 50 x 50 |
105 |
74 |
37 |
| 63 x 63 x 63 x 63 |
103 |
74 |
37 |
مخفض مقرنة
| D x D x D |
L |
Z |
L2 |
| 25 x 25 x 20 |
61 |
3.5 |
51 |
| 32 x 32 x 20 |
63 |
4 |
51 |
| 32 x 32 x 25 |
63 |
4 |
61 |
| 40 x 40 x 25 |
78 |
5 |
61 |
| 40 x 40 x 32 |
78 |
5 |
63 |
| 50 x 50 x 25 |
105 |
6 |
61 |
| 50 x 50 x 32 |
105 |
6 |
63 |
| 50 x 50 x 40 |
105 |
6 |
78 |
| 63 x 63 x 32 |
98 |
6.5 |
63 |
| 63 x 63 x 40 |
98 |
6.5 |
78 |
| 63 x 63 x 50 |
98 |
6.5 |
105 |
| 75 x 75 x 50 |
129 |
7 |
105 |
| 75 x 75 x 63 |
129 |
7 |
102 |
| 90 x 90 x 63 |
135 |
8 |
102 |
| 90 x 90 x 75 |
135 |
8 |
129 |
| 110 x 110 x 63 |
190 |
10 |
102 |
| 110 x 110 x 75 |
190 |
10 |
129 |
| 110 x 110 x 90 |
190 |
10 |
135 |
مخفض TEE
| D x D x D |
L |
Z |
Z1 |
L1 |
| 25 x 25 x 20 |
61 |
31 |
17 |
51 |
| 32 x 32 x 25 |
63 |
39.5 |
20 |
61 |
| 40 x 40 x 25 |
78 |
40 |
25 |
61 |
| 40 x 40 x 32 |
78 |
52 |
25 |
63 |
| 50 x 50 x 32 |
105 |
58 |
32 |
61 |
| 50 x 50 x 40 |
105 |
58 |
29 |
78 |
| 63 x 63 x 32 |
103 |
54 |
42 |
63 |
| 63 x 63 x 40 |
103 |
64 |
39 |
78 |
| 63 x 63 x 50 |
103 |
74 |
39 |
105 |
| 75 x 75 x 50 |
129 |
94 |
44 |
105 |
| 75 x 75 x 63 |
129 |
94 |
47 |
102 |
| 90 x 90 x 63 |
135 |
102 |
54 |
102 |
| 90 x 90 x 75 |
135 |
102 |
52 |
129 |
| 110 x 110 x 90 |
190 |
113 |
69 |
135 |
مشبك السرج
| D x G |
L |
Z |
| 25X1/2” |
17 |
16 |
| 25X3/4” |
20 |
16 |
| 32X1/2” |
17 |
20 |
| 32X3/4” |
20 |
20 |
| 32 x 1" |
22 |
20 |
| 40X1/2” |
17 |
25 |
| 40X3/4” |
20 |
25 |
| 40 x 1" |
22 |
25 |
| 50X1/2" |
17 |
31 |
| 50X3/4" |
20 |
31 |
| 50X1" |
22 |
31 |
| 50X1 1/4” |
23 |
31 |
| 63 x 1/2" |
17 |
40 |
| 63 x 3/4" |
20 |
40 |
| 63 x 1" |
22 |
40 |
| 63X 1 1/4” |
23 |
40 |
| 63 x 11/2" |
24 |
40 |
| 75 x 1/2" |
17 |
44.5 |
| 75 x 3/4" |
20 |
44.5 |
| 75 x 1" |
22 |
44.5 |
| 75X1 1/4” |
23 |
44.5 |
| 75 x 11/2" |
24 |
44.5 |
| 75 x 2" |
28 |
44.5 |
| 90 x 1/2" |
17 |
52 |
| 90 x 3/4" |
20 |
52 |
| 90 x 1" |
22 |
52 |
| 90X1 1/4” |
23 |
52 |
| 90 x 11/2" |
24 |
52 |
| 90 x 2" |
28 |
52 |
| 90X2 1/2” |
33 |
52 |
| 110X1/2” |
17 |
87 |
| 110X3/4” |
20 |
87 |
| 110X 1” |
22 |
87 |
| 110X1 1/4” |
23 |
87 |
| 110X1 1/2” |
24 |
87 |
| 110X2” |
28 |
87 |
